All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
Fitted with 10Degree positive rectangular insert allow high depth of cut and feed per tooth Uses APKT / APHW / APKR_APht / APMT insert (sold separately)

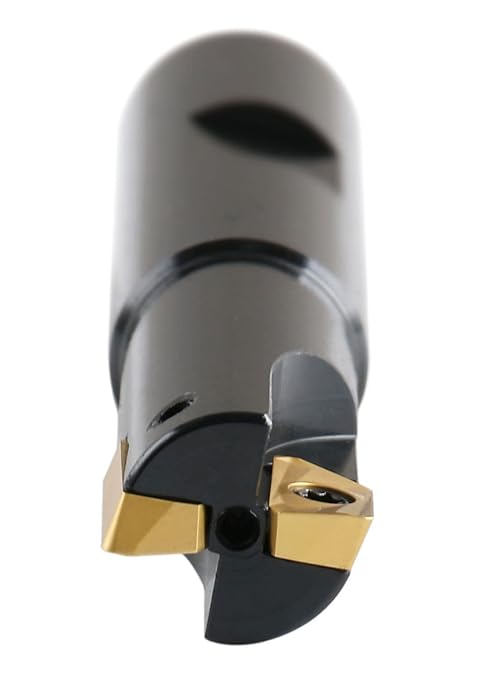

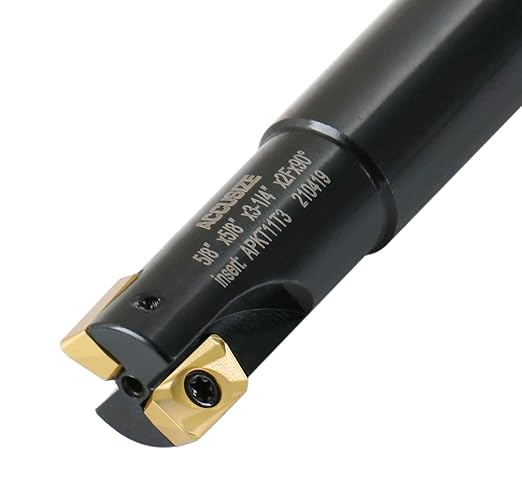

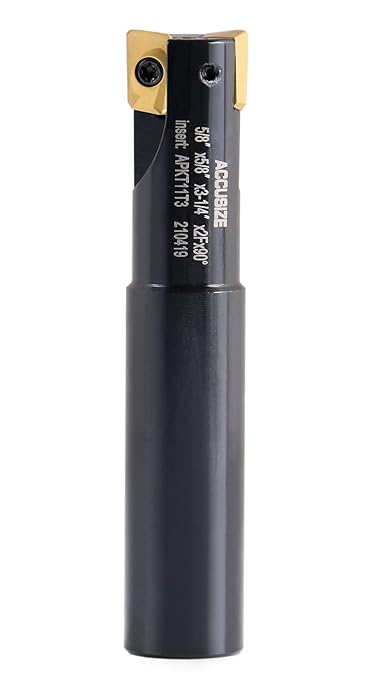

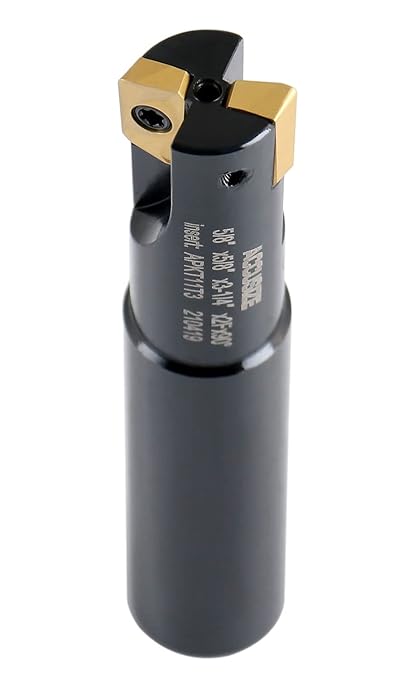

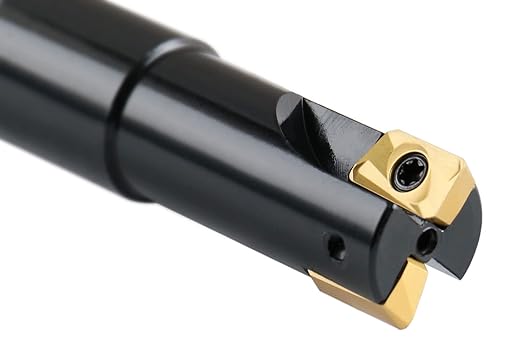

5/8" Cutting Diameter for Versatile Milling: Ideal for a wide range of milling tasks including square shoulder, side, and full slot milling.
Dual Flute with APKT11T3 Inserts: Incorporates two APKT11T3 TiN coated carbide inserts for balanced cutting action and enhanced productivity.
Broad Compatibility with Materials: Efficiently machines hardwood, MDF, and a spectrum of metals from low-carbon to tool steel and aluminum alloys.

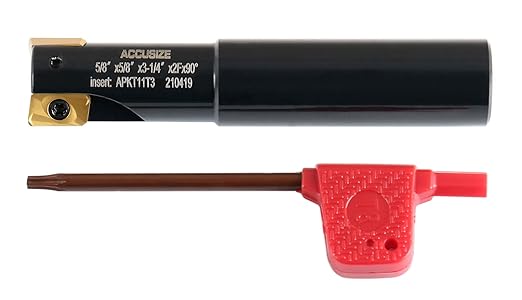

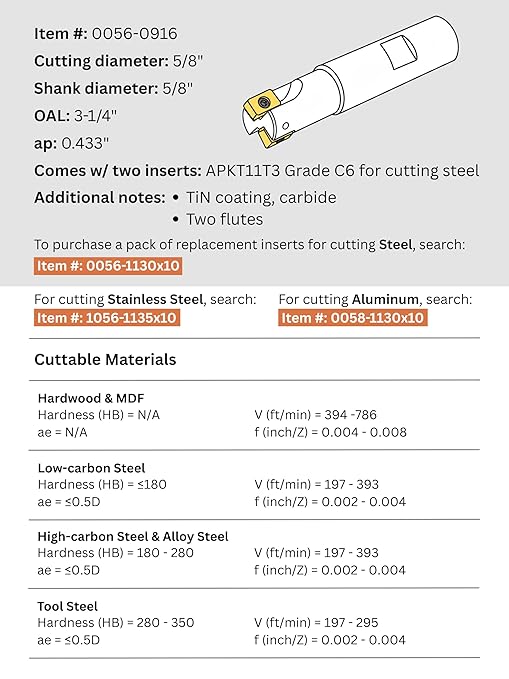

Precision Tooling Specifications: Features a 5/8" shank and 3-1/4" overall length, with a 0.433" ap, secured by M2.5 x 6 screws for insert stability.
Optimized for High-Performance Machining: Achieves cutting speeds between 197 to 786 SFM and feed rates of 0.002 - 0.008 per tooth, ensuring efficient material removal.
