About This

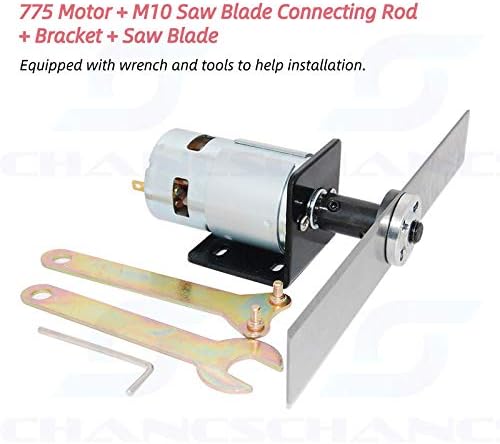

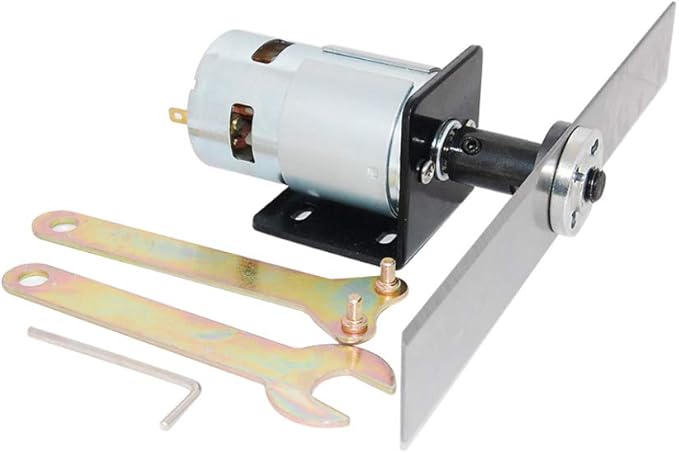

• 1.This is a DIY combination of a mini saw. Contains motor, bracket, saw blade connecting rod, and saw blade.

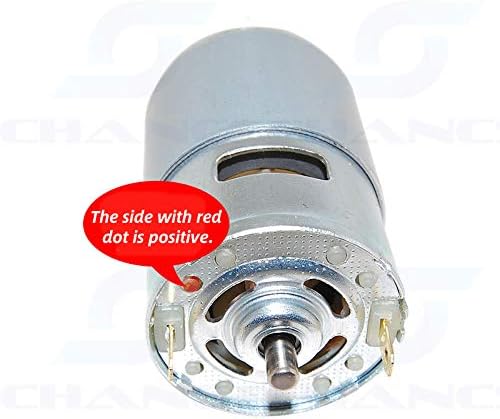

• 2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

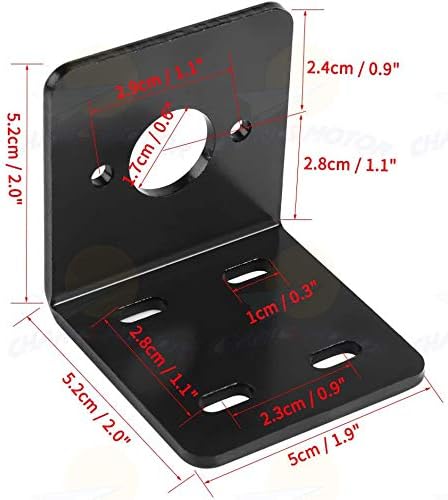

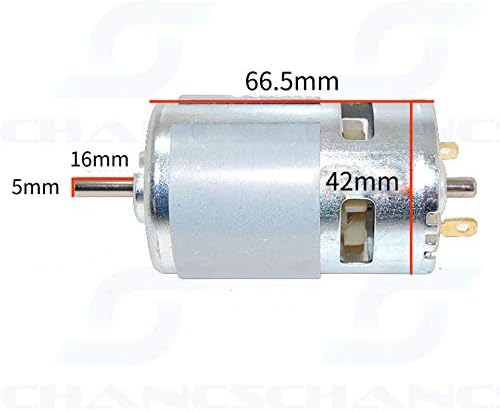

• 3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.<br> The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
• 4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting / polishing.

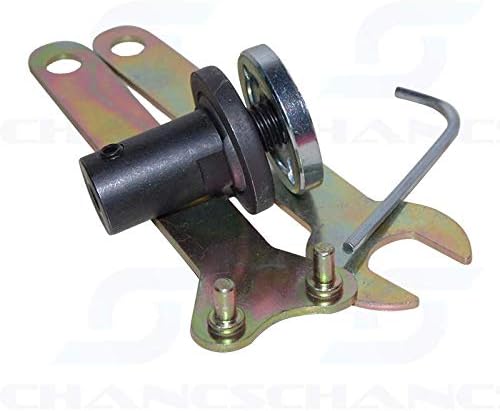

• 5.Package: 1PCS x DC Motor, 1PCS x Bracket, 1PCS x Saw Blade Connection Rod, 2PCS x Screws, 2PCS x Matching Hardware Tools, 1PCS x Saw Blade.

Overview

• Brand : CHANCS
• Speed : 20000 RPM
• Voltage : 24 Volts
• Material : Aluminum
• Item Weight : 0.66 Kilograms
