About This

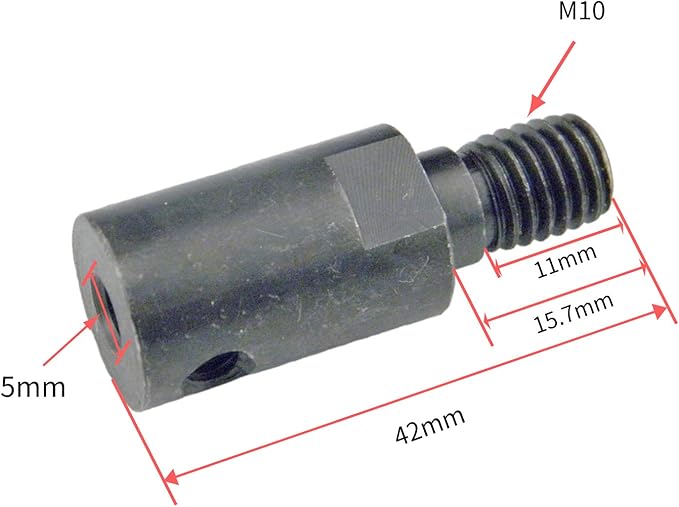

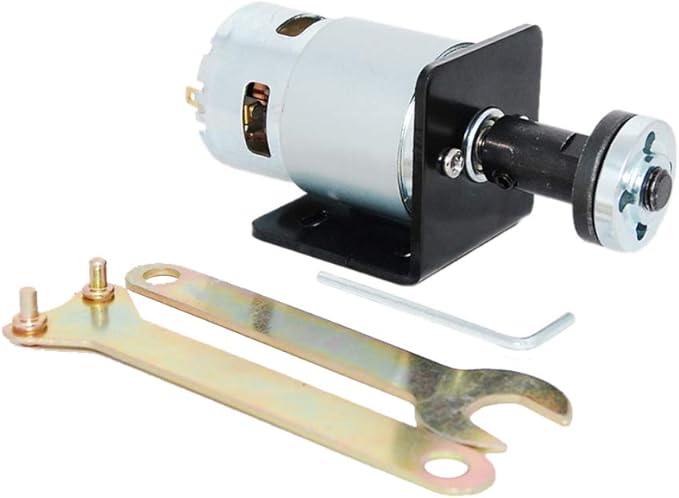

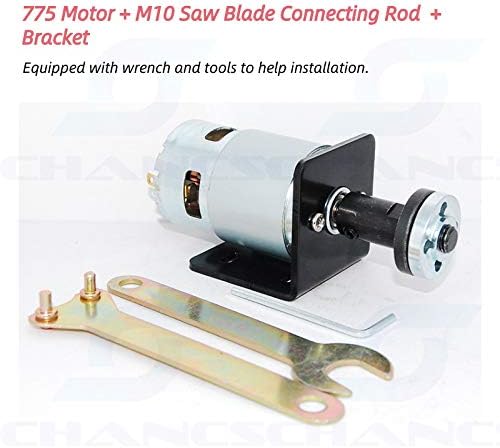

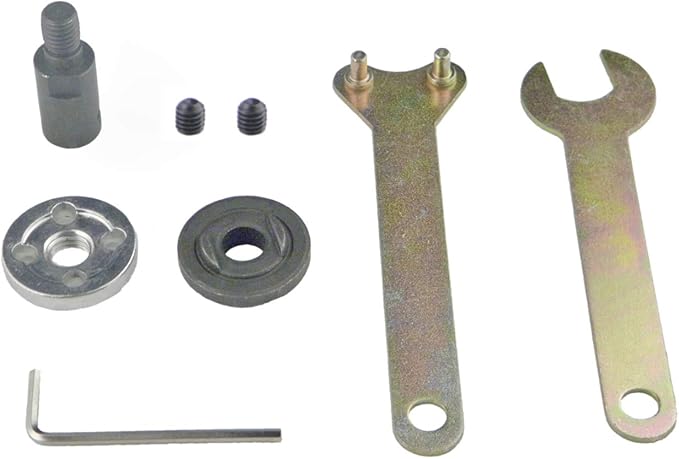

• 1.This is a DIY combination of motor bracket and saw blade connecting rod竊똠an be used with a saw blade to become a mini saw.
• 2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

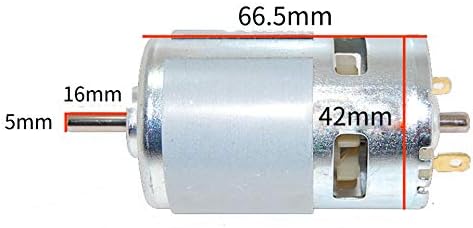

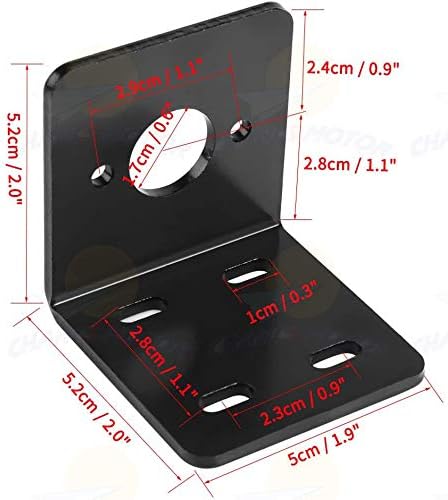

• 3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.<br> The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
• 4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.

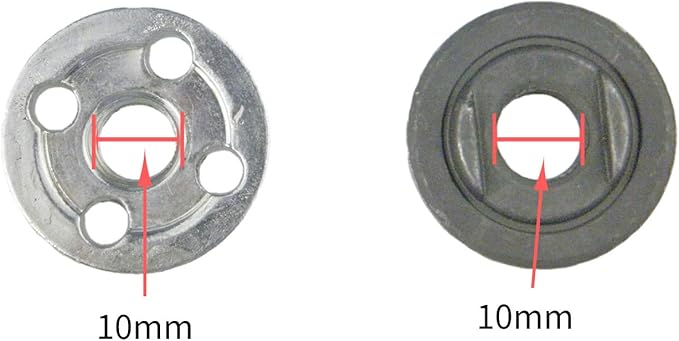

• 5.The device is suitable for saw blades with 16 mm mounting holes (inside diameter).

Overview

• Brand : CHANCS
• Speed : 20000 RPM
• Voltage : 24 Volts
• Product Dimensions : 1.65"W x 2.62"H
• Material : Aluminum
