About This

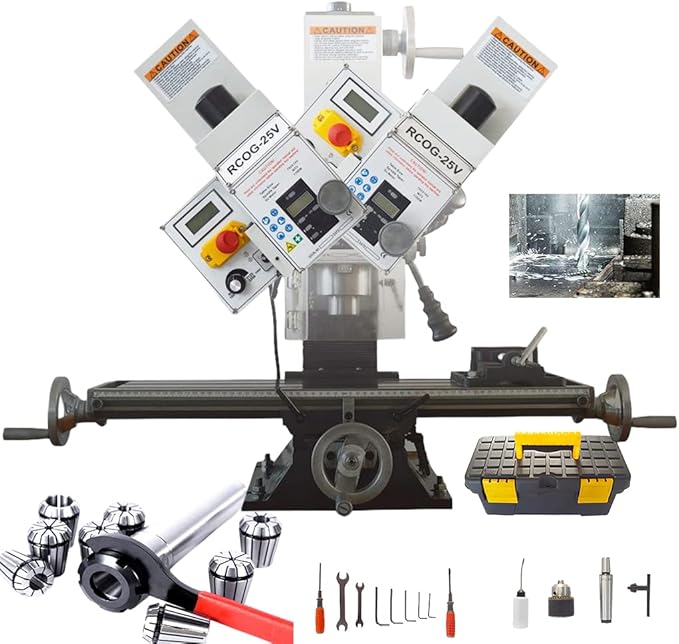

• With MT3-ER32 Drill Chucks. The Mini Milling Machine has a MT3 metric thread, comes with a set of high precision MT3-ER32 chucks. The chucks come in various sizes: 4-3/5-4/6-5/8-7/10-9/12-11/14-13/16-15.

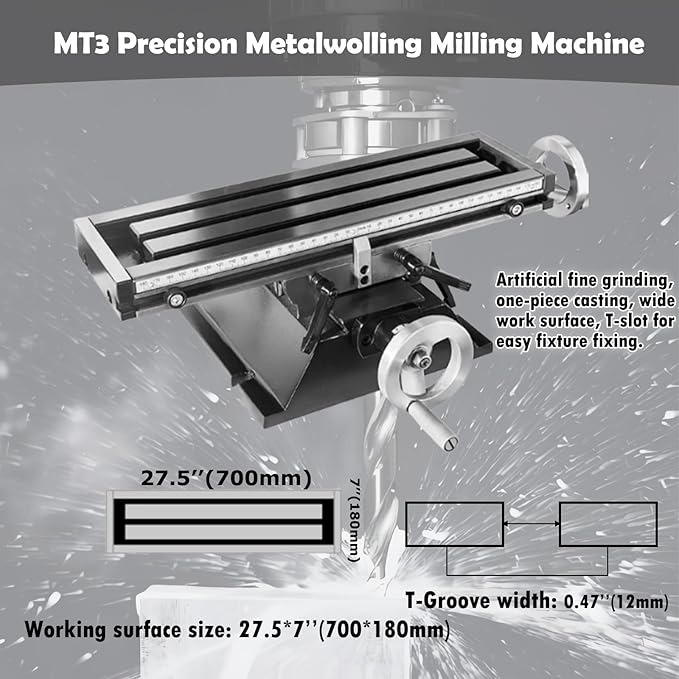

• Intergrated Cross Worktable. Our working table measures 27.5"x7.1"(700mmx180mm). The table is artificially fine-grinded, cast integrally, with high precision positioning adjustment scale, and includes a T-slot for convenient fixture fixation. Crafted for high quality, it's both reliable.
• 1100W Variable Speed. Benchtop Mill Drill Machine equipped with a 1100W brushless motor, with overload and overheating protection function, provides strong power to handle any task. It also features an Infinitely Variable-Speed with a wide range of spindle speeds from 50-2250rpm, giving you complete control over the speed for precise operations.
• High Efficiency. The Mill Drill Machine with drilling, milling groove, plane milling chamfering and other functions, suitable for all kinds of metal, wood and other materials fine processing, widely used in machinery manufacturing,woodworking DIY and so on.

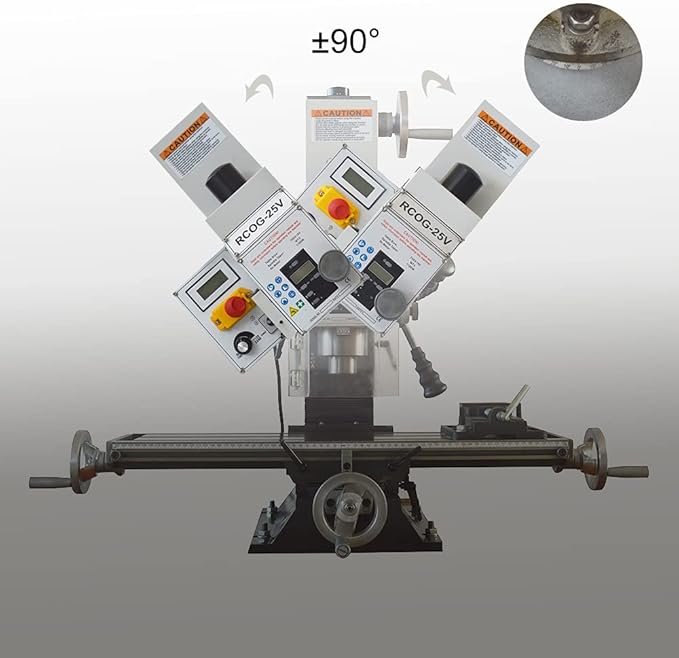

• 짹45 Degrees. Machine Head Tilt The head of the machine can betilted to the left and to the right by loosening the fixing screws of the head of the machine. The tilt Angle range is up to 90째 which is easy for drilling and milling special angles.

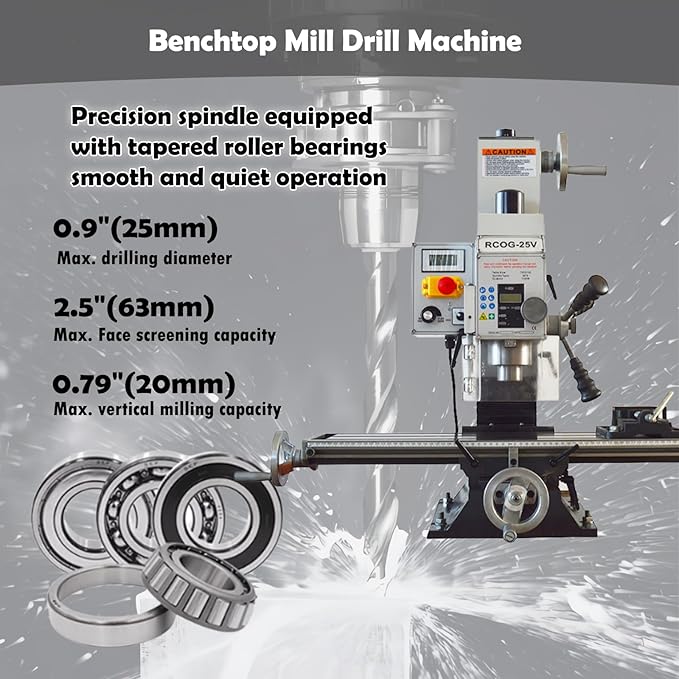

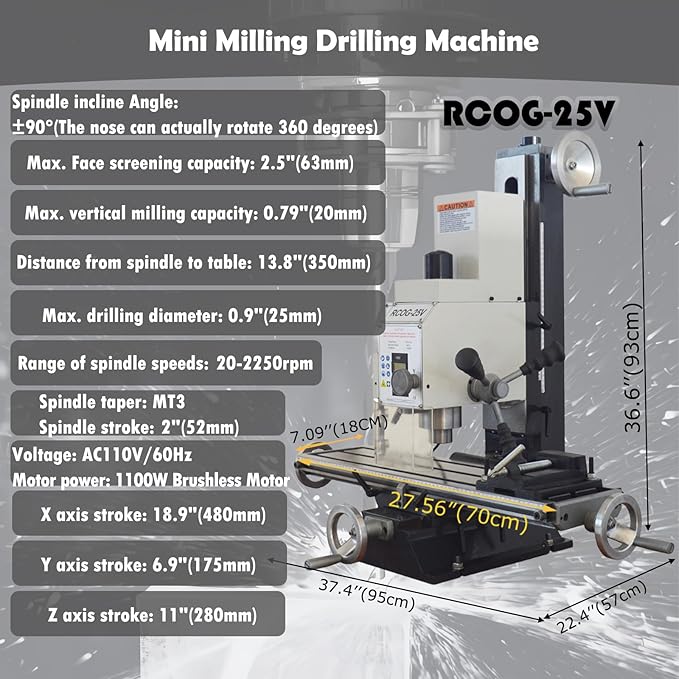

• Precision Engineering. X axis stroke: 18.9"(480mm), Y axis stroke: 6.9"(175mm), Z axis stroke: 11"(280mm), Spindle incline Angle: 짹90째, Max. drilling diameter: 0.9"(25mm), Max. Face screening capacity: 2.5"(63mm), Max. vertical milling capacity: 0.79"(20mm), Distance from spindle to table: 13.8"(350mm), Spindle taper: MT3, Spindle stroke: 2"(52mm)

Overview

• Brand : TECHTONGDA
• Power Source : Corded Electric
• Maximum Rotational Speed : 2250 RPM
• Voltage : 110 Volts
• Color : Multicolor, White
