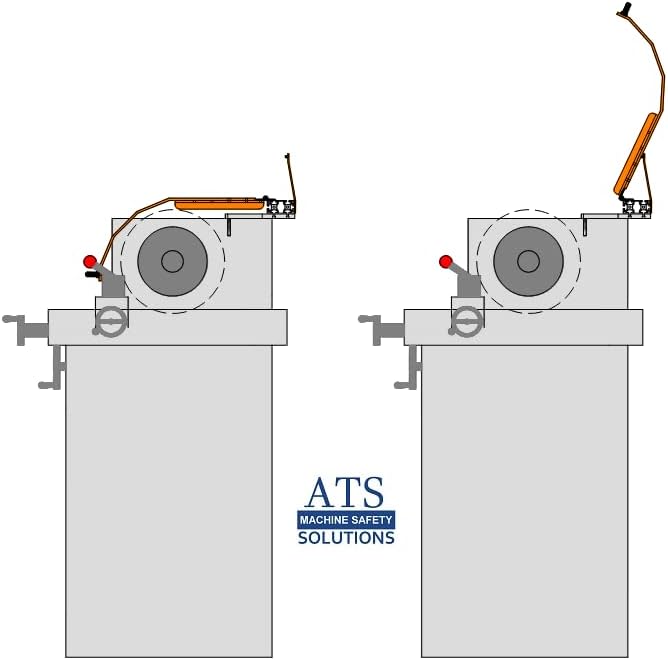

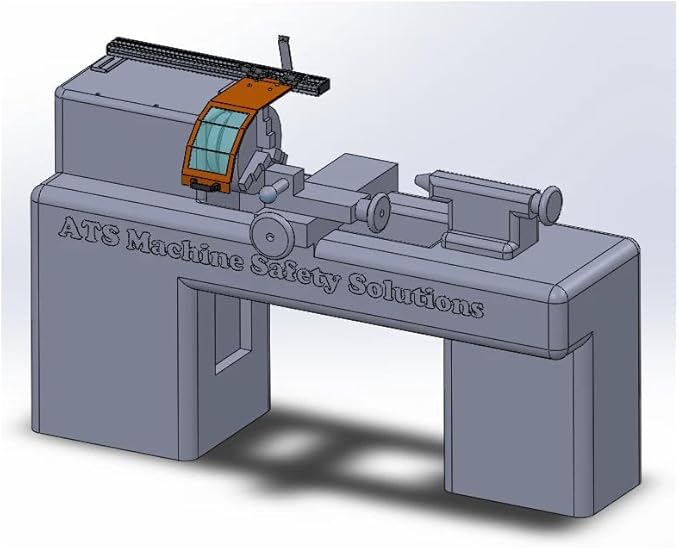

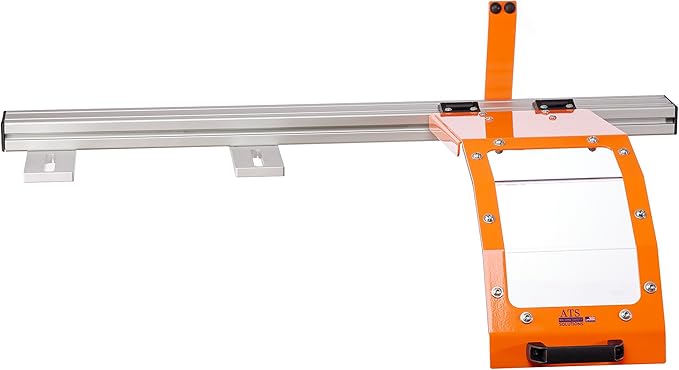

Versatile Fit for Various Lathe Sizes: This lathe chuck cover is designed to fit most common small to mid-size metal lathes with chuck diameters ranging from 8" to 16". The adjustable design, allows up to 4" of adjustment, ensuring a secure and customized fit. Additionally, the slotted mounting brackets provide further flexibility during installation, accommodating different lathe configurations.

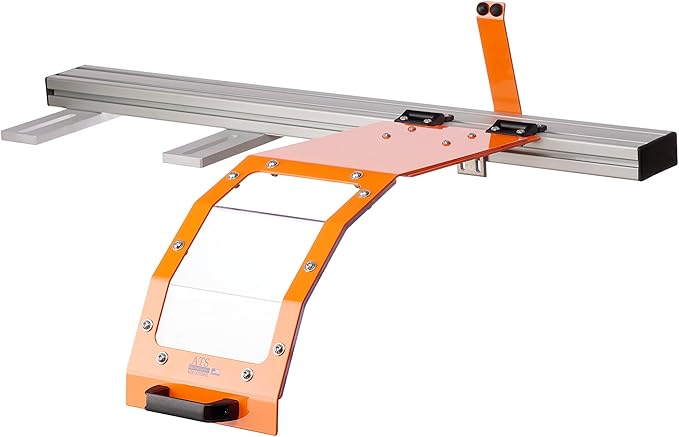

Efficient Construction: Built with durability in mind, this lathe chuck guard is constructed from 11-gauge mild steel, offering long-lasting strength and resilience. The mild zinc alloy steel friction hinges enhance the guard's functionality, ensuring smooth operation and reliable performance over time.

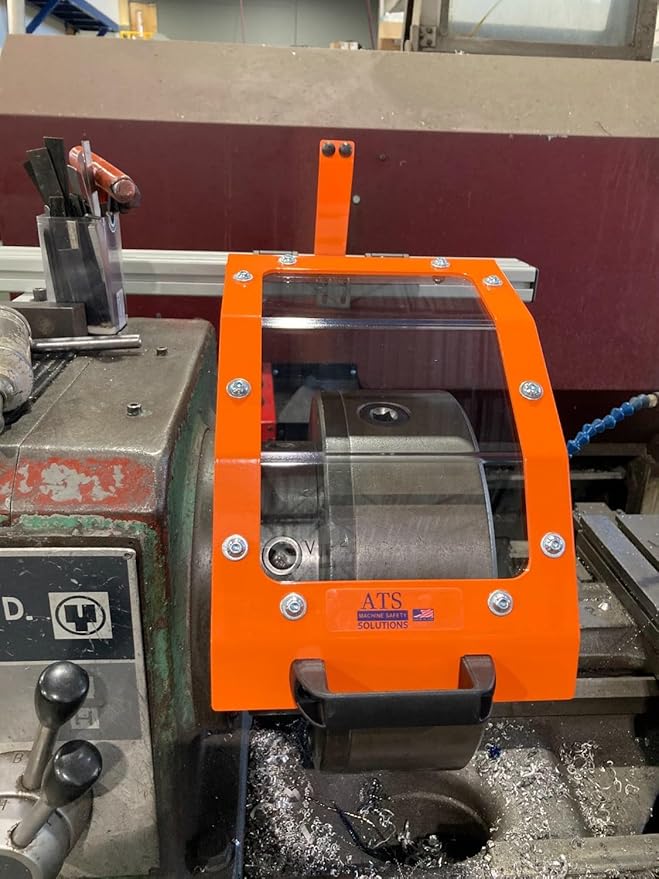

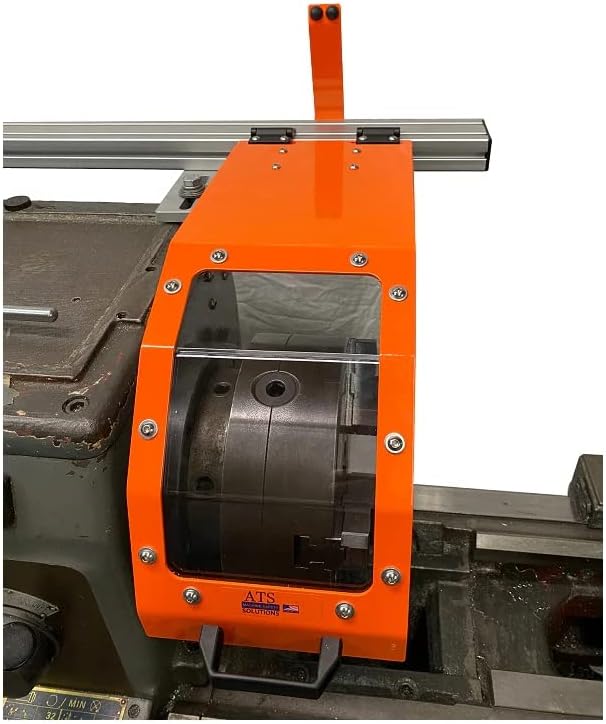

Enhanced Safety Features: The lathe chuck guard window is made from 1/4" thick Lexan (polycarbonate), providing exceptional impact resistance and robust protection. This shield covers a wide area, ensuring maximum safety for the user. The guard is finished with PPG's powder-coated "OSHA Safety Orange" paint, making it highly visible and adding an extra layer of safety by increasing its visibility in a workshop setting.

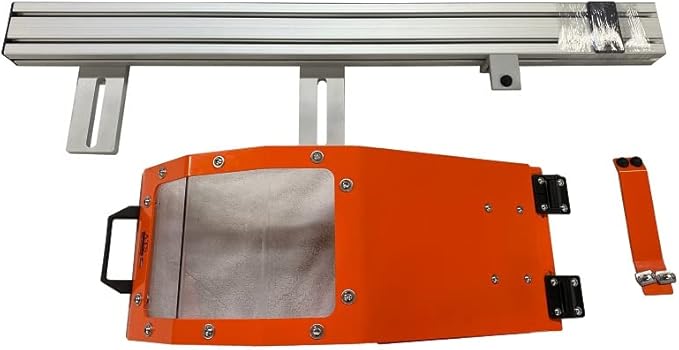

Sturdy Mounting Rail: The 40x80mm aluminum extrusion horizontal mounting rail, measuring 35" in length, provides a strong and stable foundation for the lathe chuck guard. Its construction ensures that the guard remains securely in place during operation, contributing to a safer working environment.

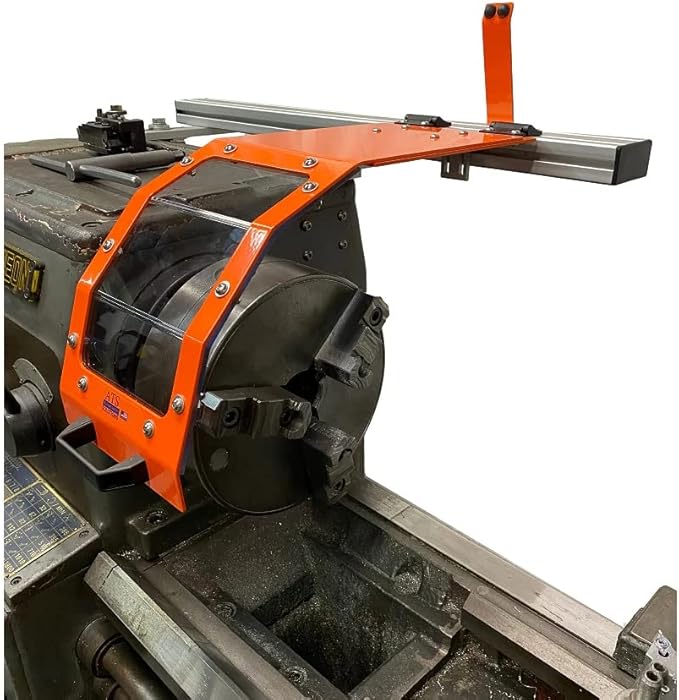

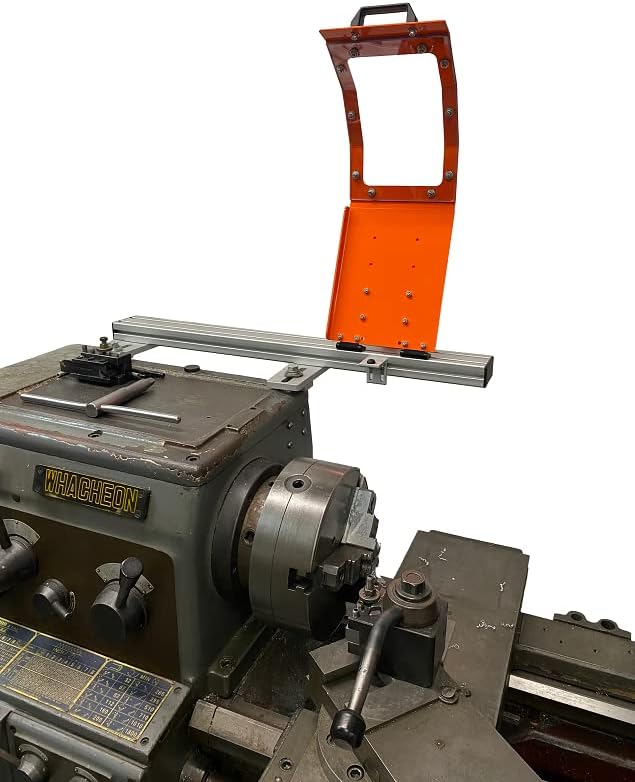

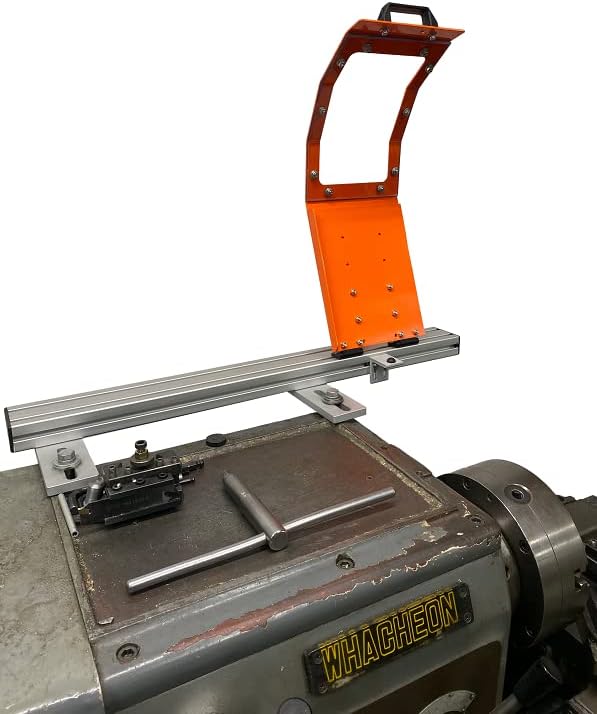

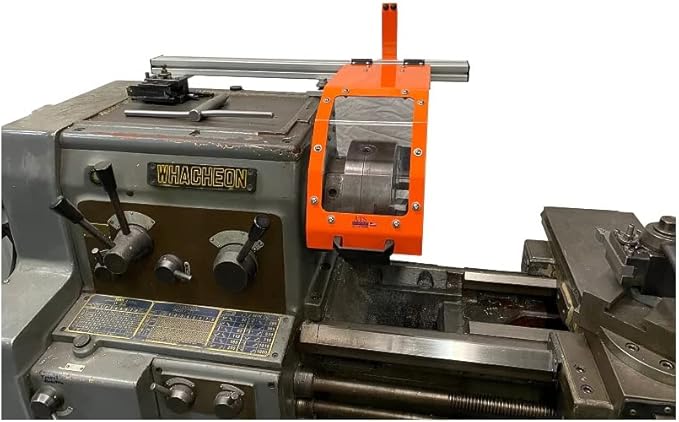

Easy and Adjustable Installation: The lathe chuck guard is designed for straightforward installation, mounting directly onto the lathe's gearbox. The adjustable brackets allow for precise alignment, utilizing the existing bolt holes in the machine's gearbox. Users are required to supply bolts that are approximately 3/4" longer than the existing ones to ensure a secure and stable attachment.
