About This

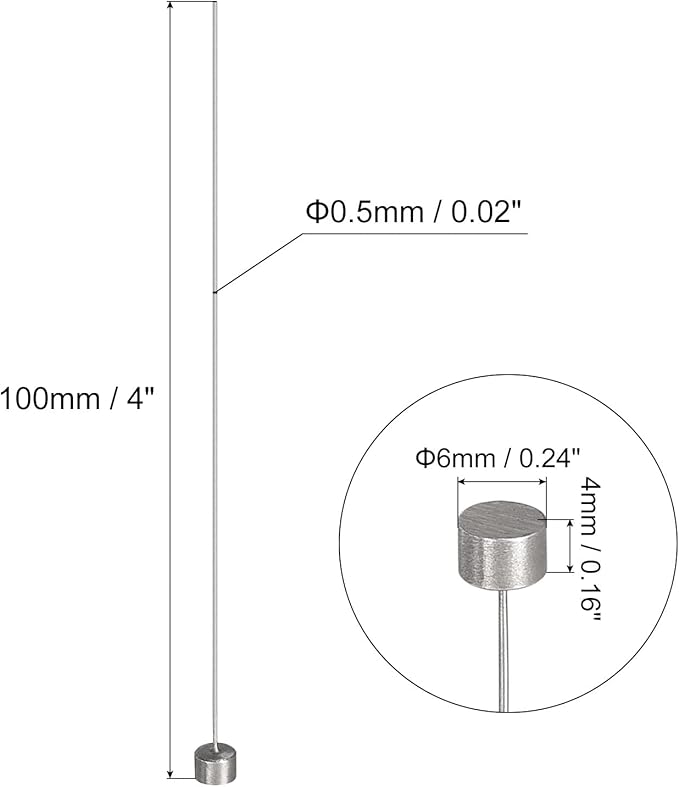

• Size - Total Length: 100mm/ 4"; Shank Diameter: 0.5mm/ 0.02"; Head Diameter: 6mm/ 0.24"; Head Thickness: 4mm/ 0.16"
• Feature - The ejector pin punch is long, straight, with non-chipping surface, and has a round tip. Not easy to be bent or deformed when working
• Material - Made of 65Mn manganese steel with quenched and tempered surface treatment and HRC: 48-52rc. This ejecting pin punch has the characteristics of high elastic limit, high strength, high harden-ability, and good machinability

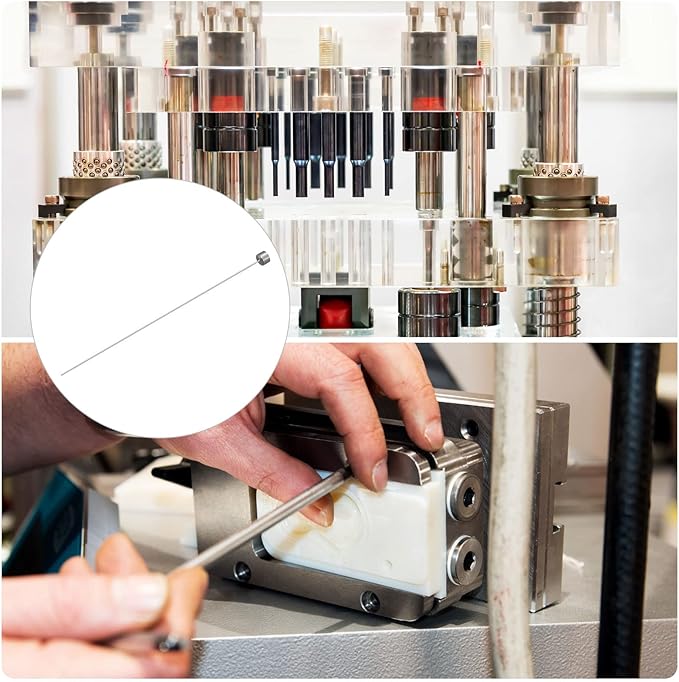

• Practical Parts - The steel straight ejector pin, can also be called a punching rod or punching needle which is an essential metal part on stamping die in mechanical tools

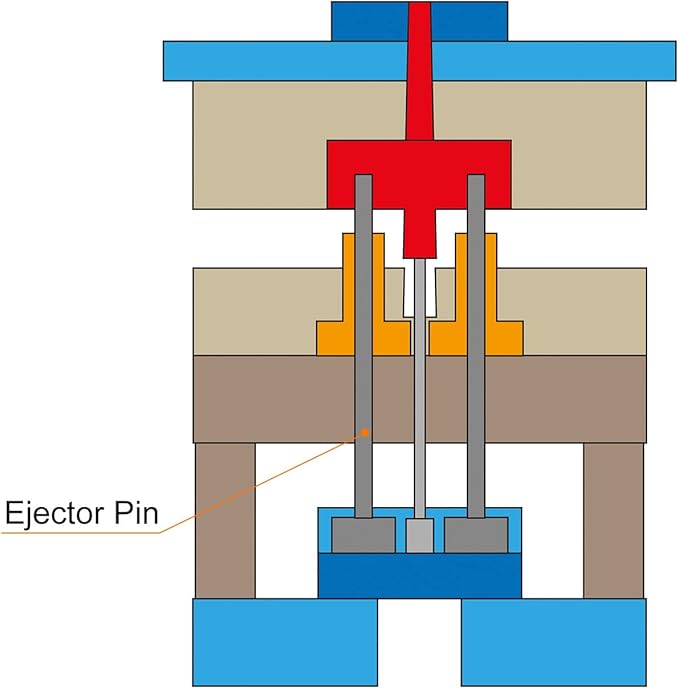

• Application - Suitable for working in high temperature operating environment. Applied in fitter, die manufacturing, leather crafting, machinery maintenance and processing industries. Eject or push the plastic parts when in plastic injection punching

Overview

• Material : 65Mn
• Size : 0.5mm
• Pin type : Ejector
• Brand : uxcell
• Item Diameter : 0.5 Millimeters
