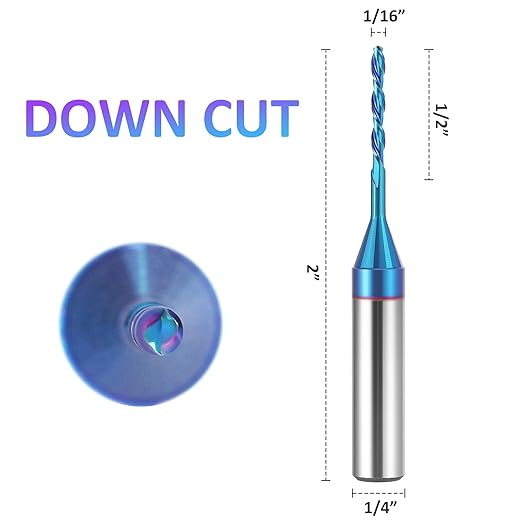

• DIMENSION: 1/4" Shank (6.35mm). Cutting edge diameter: 1/16" (1.59mm). Cutting edge length/flute length: 1/2??12.7mm). Overall length: 2??50mm). Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

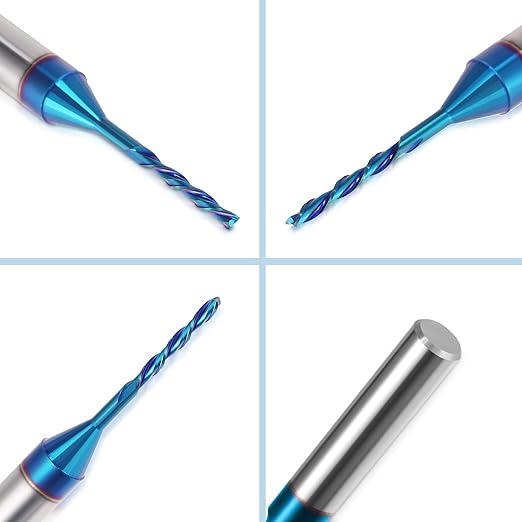

• PREMIUM QUALITY: Solid Carbide Flat End Spiral Router Bit with a .0614 (1/16?? cutting tip. Used for carving and sign making on soft woods or excellent for milling PVC and other soft material. High hardness, heat resistance, and long-lasting cutting-edge performance ensure high work efficiency.

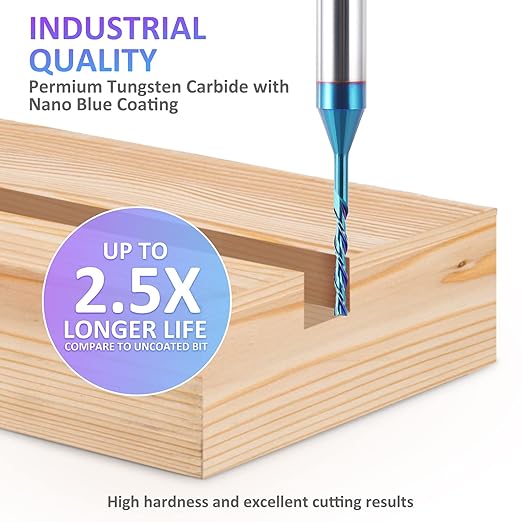

• EXCELLENT PERFORMANCE: The nano blue coat enables the tools cutting edge to retain pivotal sharpness and fluency which ensure longevity and provide better cutting results of the highest quality. Down cut bit cuts from the surface down leaving a smooth edge at the surface.
• CLEAN CUT & EXCELLENT EDGE-GRINDING: The design of flutes and larger spiral chip space of CNC Router Bit make non-stick crumbs, smokeless, odorless, and silent during processing, smooth cutting, and fast chip-removal. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate

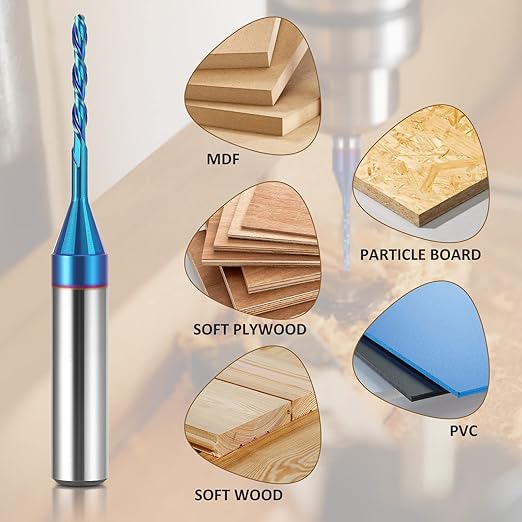

• WIDELY USE: Great for production settings and excellent for creating grooves and dado cuts in softwood, plywood, PVC, MDF. Suitable for most machines such as handheld, table-mounted portable routers, and CNC machine router bits.
• WARNING: Due to the extremely small diameter involved, you need to slow down the speed and bit is not guaranteed against breakage.

Overview

• Size : 1/16?쒭ia x 1/2?쒬L x 2?쒹AL
• Material : Carbide
• Brand : HQMaster
• Cutting Length : 12.7 Millimeters
• Item Weight : 0.02 Kilograms
