About This

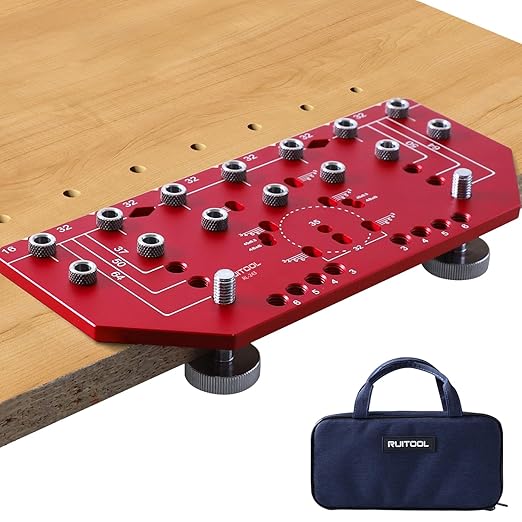

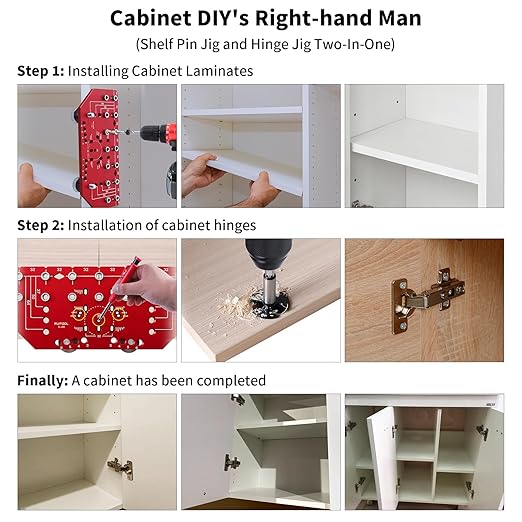

• 2-in-1: This tool is a combination of shelf pin jig and hinge jig functions. One tool can help you finish the whole cabinet DIY.

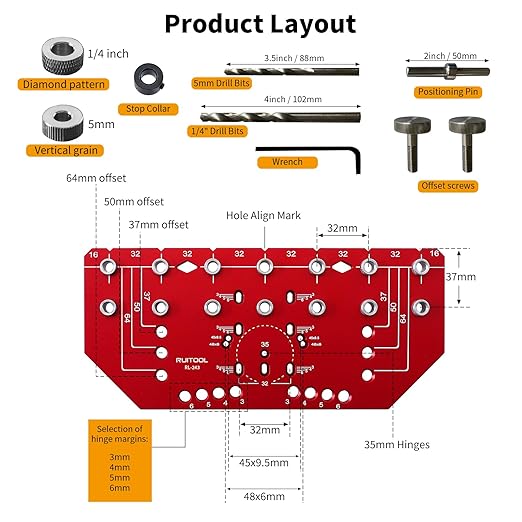

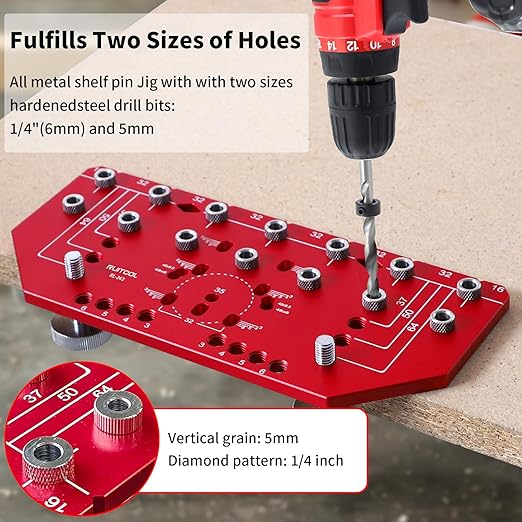

• Cost-effective: This shelf pin jig comes with two sizes of hardened steel drill bits: 1/4"(6 mm) and 5mm. Meets all your shelf pin hole size requirements at once. A stop collar is also included.

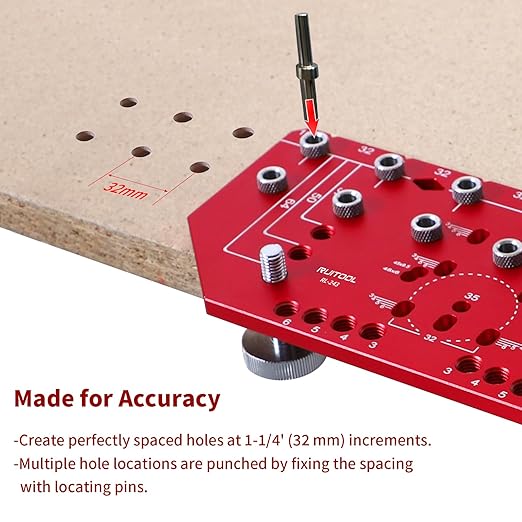

• Precise and Efficient: This shelf pin jig can accurately drill seven 5mm or 1/4" (6 mm) shelf pin holes at 1-1/4 inch distance in one quick pass. And the included Positioning Pin helps you to continue drilling more shelf pin holes. 37/50/64 mm edge distance can help you set up all different shelf installion edge distance.
• All-in-one Hinge Drilling Jig: Our cabinet hinge drilling templates are for the most common concealed hinges in the United States. The distance from the 35 mm hole to the wood panel edge is optional 3-6 mm. Including hinge screws 48*6 and 45*9.5 mm.

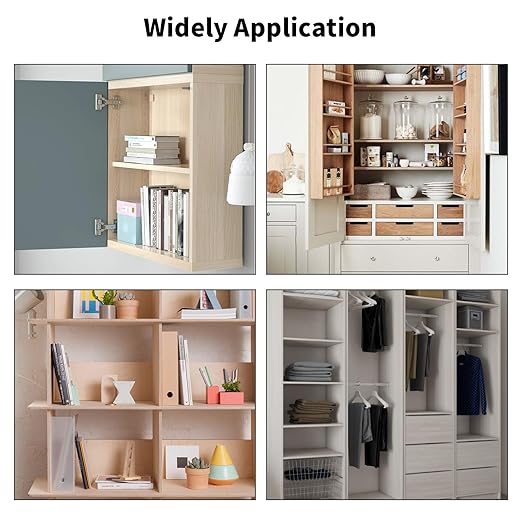

• Widely Used: All-metal shelf pin and hinge jig made of aluminum alloy material with friction-resistant surface. Multi-functional and multiple mounting size options are designed to already meet your common shelf pin hole and hinge installation. Perfect for DIY, woodworking and home improvement.

Overview

• Material : Metal
• Cutting Diameter : 6 Millimeters
• Finish Type : Titanium Aluminum Nitride
• Shank Type : Round Shank
• Brand : RUITOOL
