About This

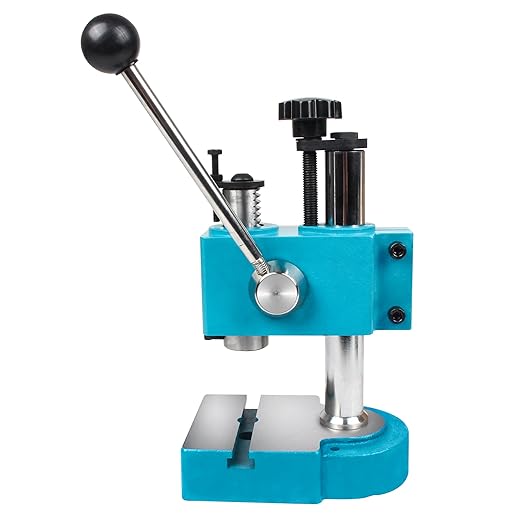

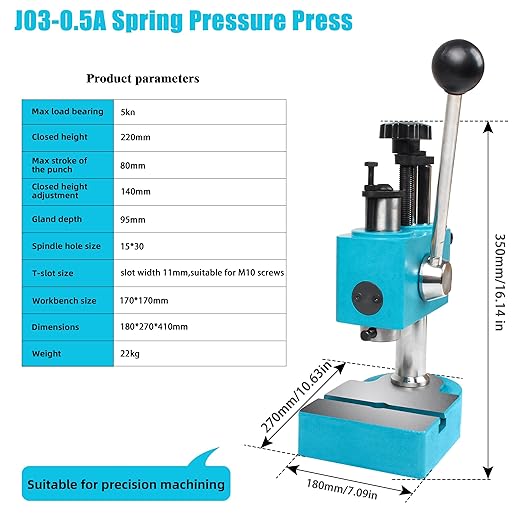

• ?끹€륲pring-loaded Manual Press?멝aximum pressure: 5KN/0.5T; closed height: 220mm; closed height adjustment: 140mm; throat depth: 95mm; die handle hole size: diameter 15*30; T-slot size: suitable for M10 screws, slot width of 11mm; table size: 170*170mm; external dimensions: 180*270*410mm; weight: 22kg.

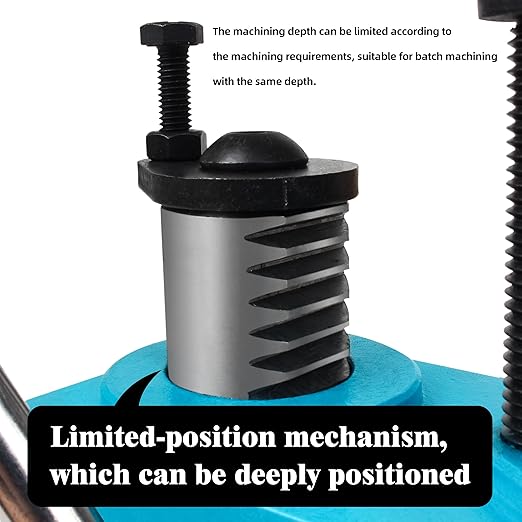

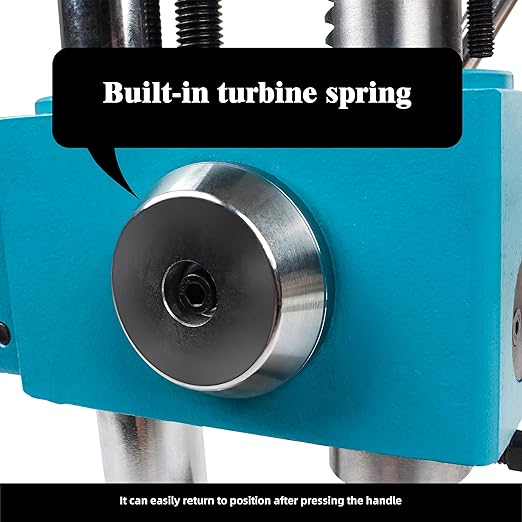

• ?끹€륛uilt-in turbine spring?멇fter pressing the operating handle by hand, the handle can be rebounded by the built-in scroll spring, which is more labour-saving for machining, and can locate the depth, which is suitable for the same depth machining in large quantities.
• ?끹€륪ain Features?멦he upper plane of the base is processed by fine polishing to increase the processing accuracy, and the base is made of cast iron with thickening and weighting design to increase the overall stability of the press.

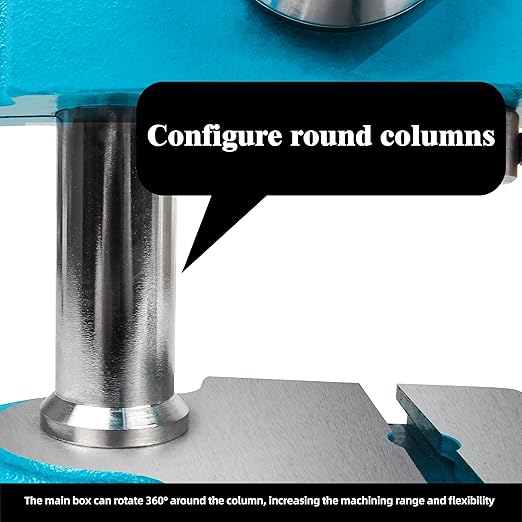

• ?끹€륳hickened cast iron base design?멐quipped with round column, the main chassis can rotate 360째around the column, increasing the machining range and machining flexibility; Maximum stroke of punch is 80mm, loosen the screws in order to lift the machine head, and lock it after adjusting in place.

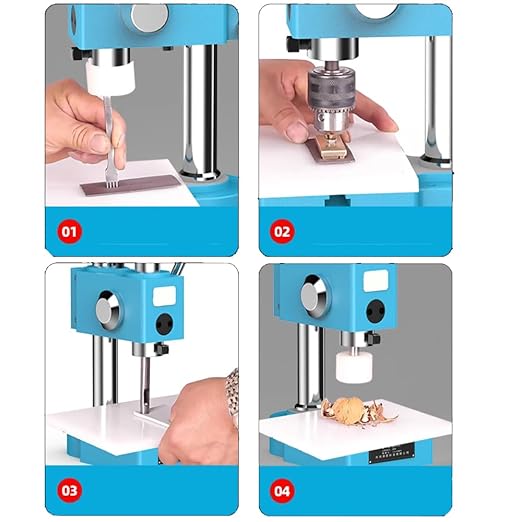

• ?끹€륯owerful functionality with a wide range of product applications?멬idely used in electronics, instrumentation, jewellery, zip, small hardware and garment industries, it can shear, punch, drop, bend, shallow stretch, crimp, brocade and form metal and non-metallic sheets, strips and coils.

Overview

• Material : Cast Iron
• Brand : RATTMMOTOR
• Product Dimensions : 10.63"L x 7.09"W x 16.14"H
• Item Weight : 18.04 Kilograms
• Operation Mode : Manual
