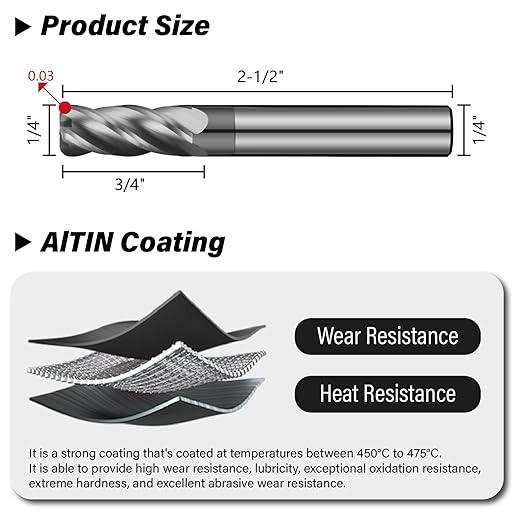

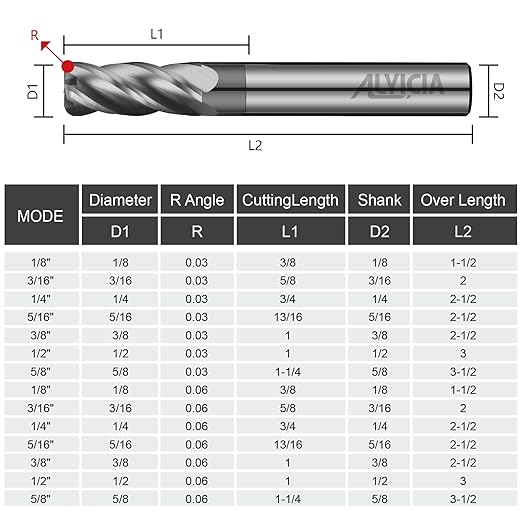

Size: 1/4" cutting diameter x 1/4" shank diameter x 3/4" length of cut x 2-1/2" overall length竊? flute, 35째 helix, solid carbide corner radius end mill, 0.03" corner radius, AlTIN coated.

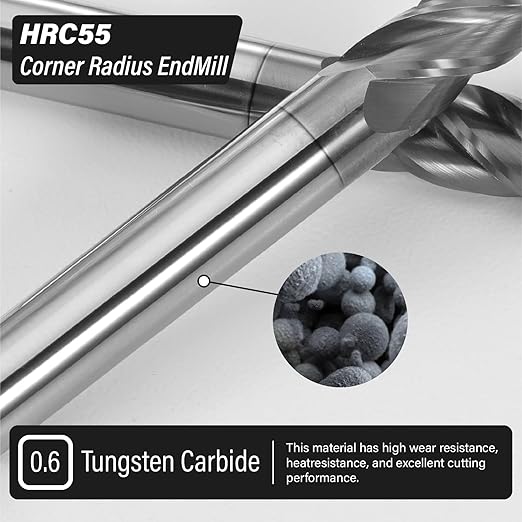

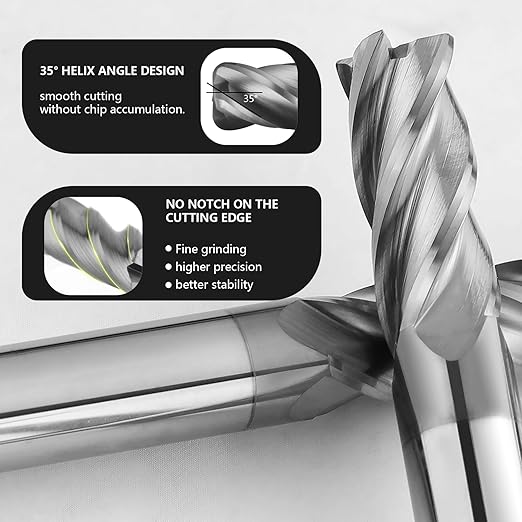

Material: ALYICIA end mill is made of tungsten carbide material, it is high-wearable and has a long life; 4 flutes 35째 helix angle design,great for speedy cutting smooth cutting and fast chip-removal, gives outstanding cutting performance and wear resistance.
AlTIN Coating: Titanium aluminum nitride (AlTiN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds for improved tool life and increased production output, offering better heat resistance than TiAlN, TiN or TiCN coatings.

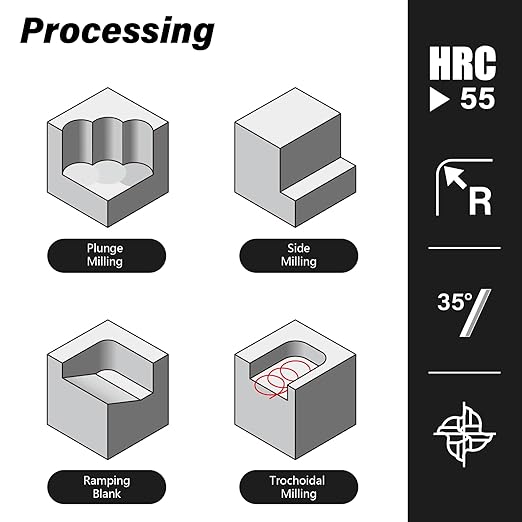

Application: End mill bits are suitable for side milling, end milling, step milling,slot milling, etc. Used for general purpose milling in most materials of medium hardness such as Alloy Steel, Hardened Steel, Iron, Copper, and nonferrous materials.

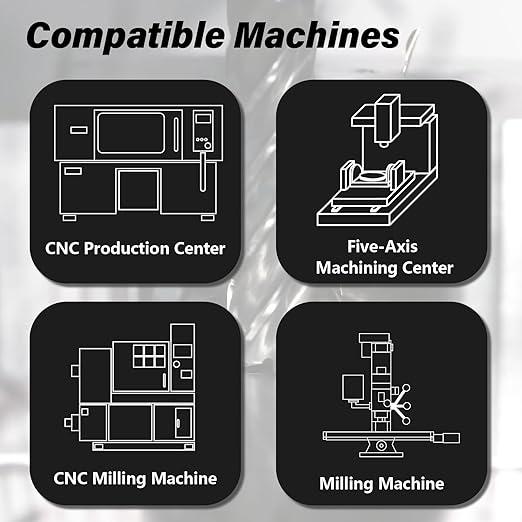

Our end mill bits are compatible with most desktop CNC machines, as well as other industrial CNC machines. Whether you're working on a small project or a large-scale industrial application, this end mill is equipped to handle the job with precision and efficiency.
