NANPU Z Series 2-Stage Air Filtration System - Sintered & Fine Filters, 1/2" NPT Inlet, 1/4" NPT Outlet Module, 0-230 psi Gauge, 127 CFM @ 6 bar, Metal Housing, Auto Drain (ZP106-D)

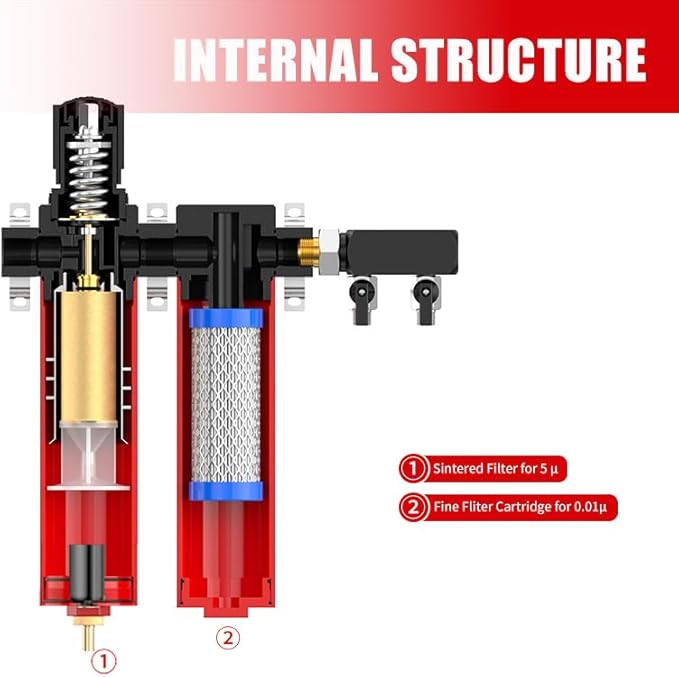

Efficient 2-Stage Filtration: The NANPU ZP1 Series Combines sintered and fine filters to remove oil, water, and particles from compressed air, ideal for medium-precision applications.

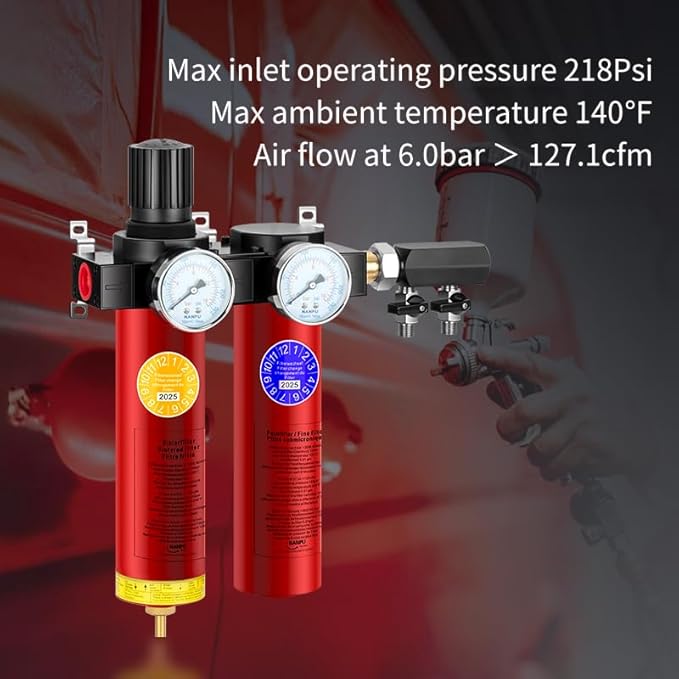

High Performance Under Pressure: Supports a maximum inlet pressure of 218 psi and an adjustable outlet pressure of up to 145 psi, delivering 127 CFM( 3,600 Nl/min) airflow at 6 bar inlet pressure for high-demand tasks.
Durable and Heat Resistant Design: Constructed with a robust metal housing, resistant to temperatures up to 140째F (60째C), ensuring reliable performance in tough environments.

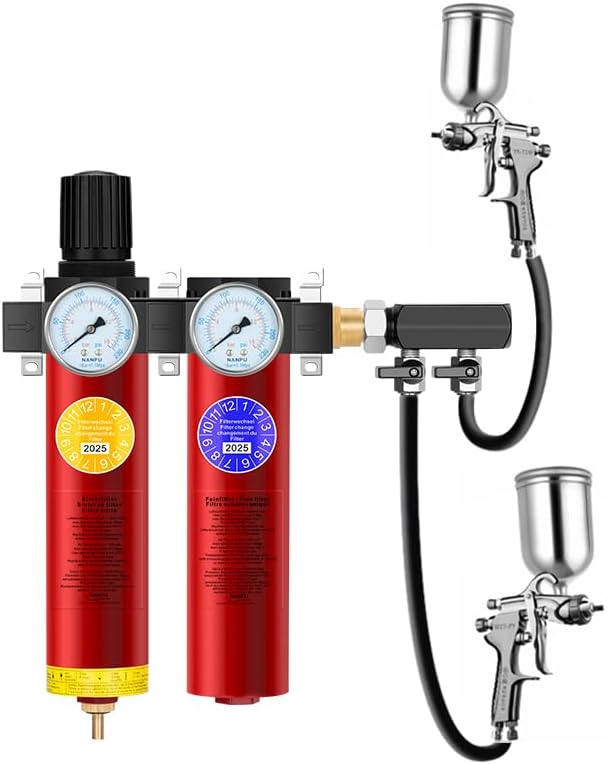

Versatile Modular System: Adaptable for automotive refinishing, carpentry, decorative painting, and yacht/boat building, with options for line installation or outgoing module configurations.

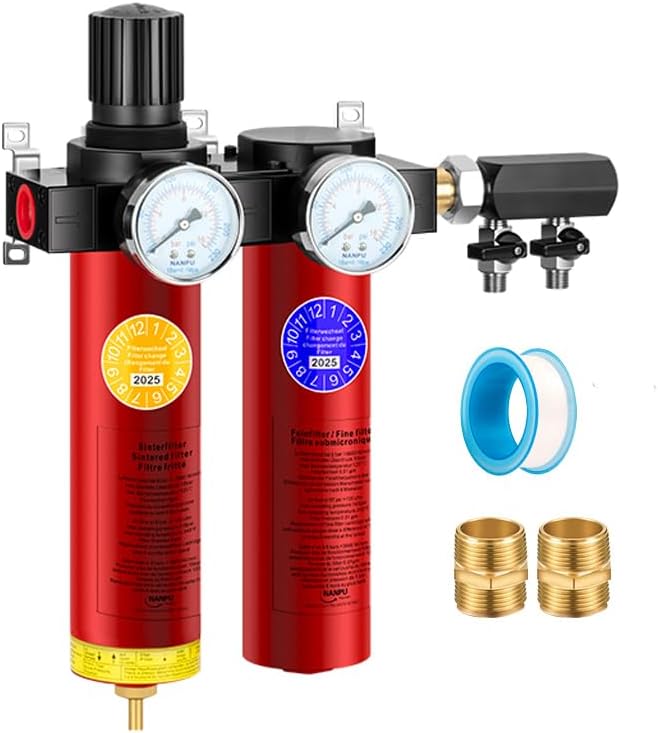

Accessories included: 1x ZP1 2-Stage Filtration System, 2 x 0-230 psi Pressure Gauges, 3 x Metal Mounting Brackets, 1 x Thread Seal Tape, and a pair of threaded couplings.
